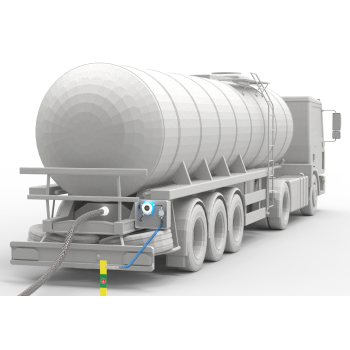

Portable Static Grounding Controller
- group name
- Static Grounding & Bonding Solutions
- Min Order
- 1 piece
- brand name
- ALPTEC Static Grounding Solutions Manufacturer
- model
- Earthing Pro MV
- Nearest port for product export
- Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Mon, 02 Feb 2026 05:34:35 GMT
Paramtents
Ground Resistance Threshold ≤ 10 Ω
Outputs On-off signal,10A 250VAC/5A 30VDC
Operating Temperature -20 °C to +60 °C
Response Time < 1 second
Supply Voltage 85~250 V / 24~48 V
Input Current 90mA
Certification II2(1) G Ex db ia[ia Ga]IIC T6 Gb
Certification II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db
Packging & Delivery
- 45cm x34cm x16cm
-
Min Order1 piece
Briefing

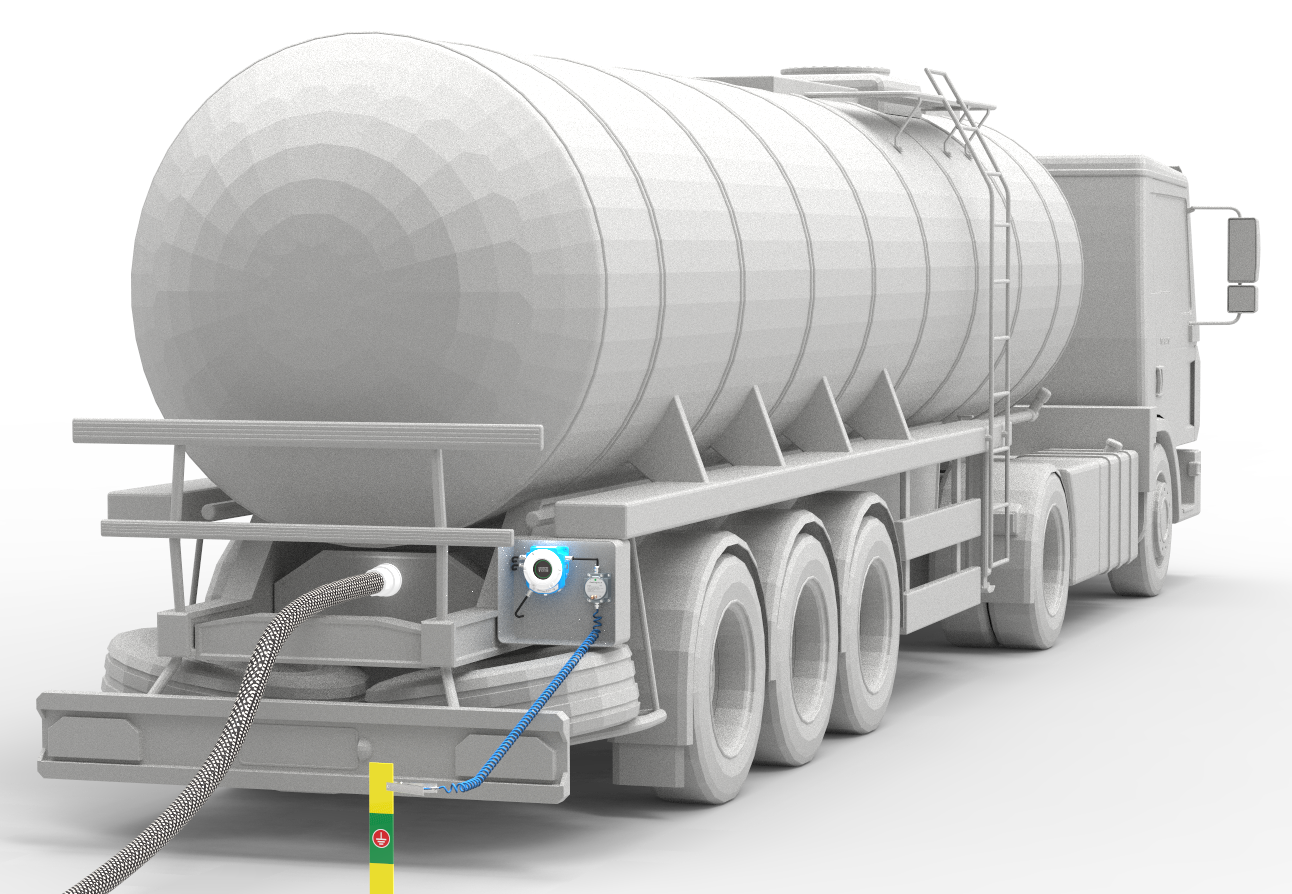

Earthing Pro MV is a mobile static grounding controller designed for temporary or non-fixed loading and unloading operations.
Detailed
Portable Static Grounding Controller Earthing Pro MV
1. Introduction
Earthing Pro MV is a mobile static grounding controller designed for temporary or non-fixed loading and unloading operations.
It provides reliable grounding verification and alarm indication in situations where permanent grounding systems are not available or practical.
2.Technical Highlights
1.Ground continuity monitoring
.
2.Alarm output.
3.DC power supply from vehicle electrical system
.
4.Industrial-grade connectors and grounding cables.
3.How Earthing Pro MV Works？
1.The grounding clamp is connected to the target equipment or structure
.
2.Verifies the grounding connection
.
3.Status is indicated by visual and audible signals
.
4.Alarm is triggered if grounding is interrupted during operation.
4.Key Features
1.Dedicated vehicle-mounted design
.
2.Seamless integration with vehicle power systems
.
3.Continuous grounding monitoring
.
4.High-visibility visual and audible alarms
.
5.Rugged enclosure for mobile and outdoor environments
.
6.Quick deployment across multiple locations.
Earthing Pro MV – on-board static discharge protection, anytime, anywhere.
