Electrostatic Grounding Controller for FIBC

group name: Static Grounding & Bonding Solutions

Min Order: 1 piece

brand name: ALPTEC Static Grounding Solutions Manufacturer

model: Earthing Pro FIBC

Nearest port for product export: Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, D/P D/A, PayPal, Westem Union

update time: Mon, 02 Feb 2026 05:34:20 GMT

contact supplier

Paramtents

Ground Resistance Threshold ≤ 10 Ω
Outputs On-off signal,10A 250VAC/5A 30VDC
Operating Temperature -20 °C to +60 °C
Response Time < 1 second
Supply Voltage 85~250 V / 24~48 V
Input Current 90mA
Certification II2(1) G Ex db ia[ia Ga]IIC T6 Gb
Certification II2(1) D Ex ia tb[ia Ga]IIIC T80℃ Db

Packging & Delivery

45cm x34cm x16cm
Min Order1 piece

Briefing

Earthing Pro FIBC is a static grounding controller specifically designed for conductive and dissipative FIBC (Flexible Intermediate Bulk Containers), commonly known as big bags.

Detailed

Electrostatic Gpuding Controller Earthing Pro FIBC

1. Introduction

Earthing Pro FIBC is a static grounding controller specifically designed for conductive and dissipative FIBC (Flexible Intermediate Bulk Containers), commonly known as big bags.

The system verifies proper grounding of the FIBC bag before and during filling or discharge operations, helping to reduce electrostatic ignition risks in powder and bulk material handling.

2.Why FIBC Grounding Matters？

1.Static charge accumulation during powder filling .

2.Electrostatic discharge inside combustible dust atmospheres.

3.FIBC grounding often overlooked or incorrectly applied .

4.Visual checks alone cannot confirm grounding integrity.

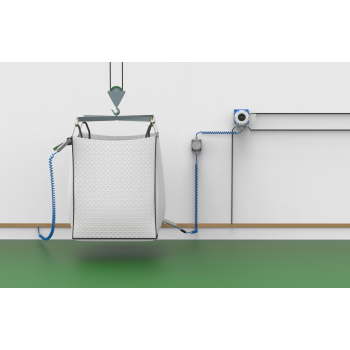

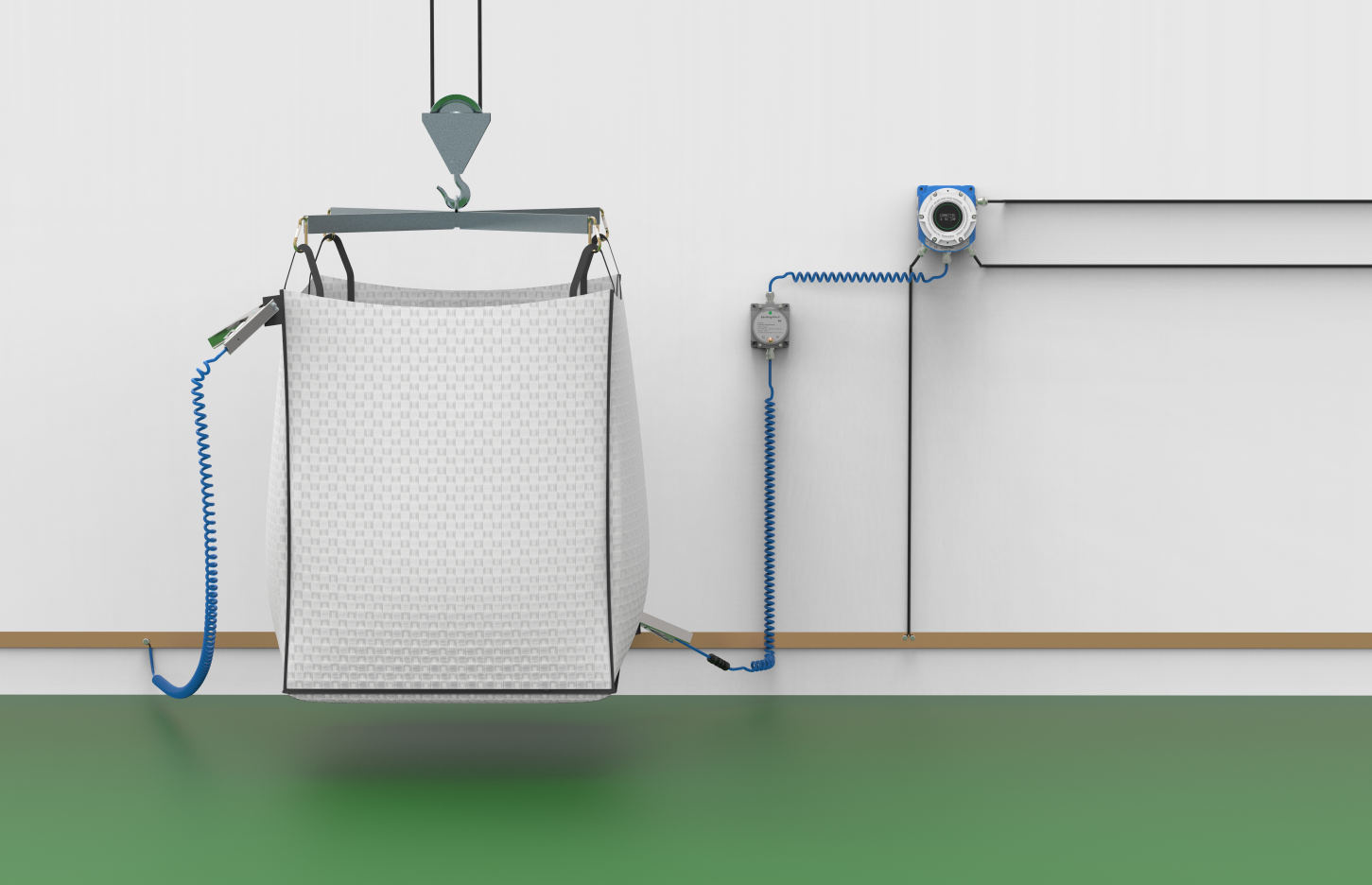

3.How Earthing Pro FIBC Works？

1.The grounding clamp is connected to the FIBC conductive element .

2.Earthing Pro FIBC verifies the grounding connection .

3.Visual and audible signals indicate grounding status .

4.Filling or discharge is permitted only when grounding is confirmed .

5.Alarm is activated if grounding is lost during operation.

4.Key Features

1.Dedicated design for conductive and dissipative FIBC .

2.Continuous grounding verification during operation.

3.Prevents filling under ungrounded conditions .

4.High-visibility visual and audible alarms .

5.Industrial-grade enclosure for filling environments .

6.Optional interlock with filling equipment.

5.Applications

1.FIBC filling stations

2.Powder and bulk material handling

3.Chemical and pharmaceutical plants

4.Food and feed processing facilities

5.Hazardous dust environments

6.Product Positioning

Earthing Pro FIBC is designed specifically for grounding conductive and dissipative big bags.

For liquid transfer and tank vehicle grounding, Earthing Pro GE、TK or MV systems are recommended.
