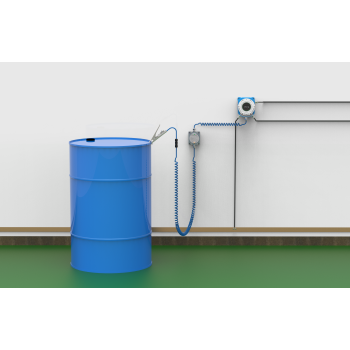

General Electrostatic Grounding Controller

group name: Static Grounding & Bonding Solutions

Min Order: 1 piece

brand name: ALPTEC Static Grounding Solutions Manufacturer

model: Earthing Pro GE

Nearest port for product export: Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, D/P D/A, PayPal, Westem Union

update time: Mon, 02 Feb 2026 05:34:25 GMT

contact supplier

Paramtents

Ground Resistance Threshold: ≤ 10 Ω
Outputs: On-off signal,10A 250VAC/5A 30VDC
Operating Temperature: -20 °C to +60 °C
Response Time: < 1 second
Supply Voltage: 85~250 V / 24~48 V
Input Current: 90mA
Certification: II2(1)G Ex db ia [ia Ga] IIC T6 Gb

Packging & Delivery

45cm x34cm x16cm
Min Order1 piece

Briefing

Earthing Pro GE is a true earth verification system designed to prevent ignition risks caused by static electricity during tanker loading and unloading operations.
Unlike conventional grounding monitors that only detect metal contact, Earthing Pro GE actively verifies a genuine low-resistance connection to true earth before enabling operation.

Detailed

Classic Static Grouding SystemEarthing Pro GE

1. Introduction

Earthing Pro GE is a true earth verification system designed to prevent ignition risks caused by static electricity during tanker loading and unloading operations.

Unlike conventional grounding monitors that only detect metal contact, Earthing Pro GE actively verifies a genuine low-resistance connection to true earth before enabling operation.

2.Why True Earth Verification Matters？

In hazardous area loading operations, a visible metal-to-metal connection does not necessarily mean a true earth is present.

Paint coatings, corrosion, grease, insulated components or vehicle construction can create a false grounding path. In such cases, static charge may remain undetected, significantly increasing the risk of ignition.

True earth verification is therefore essential for safe tanker loading operations.

3.How Earthing Pro GE Works？

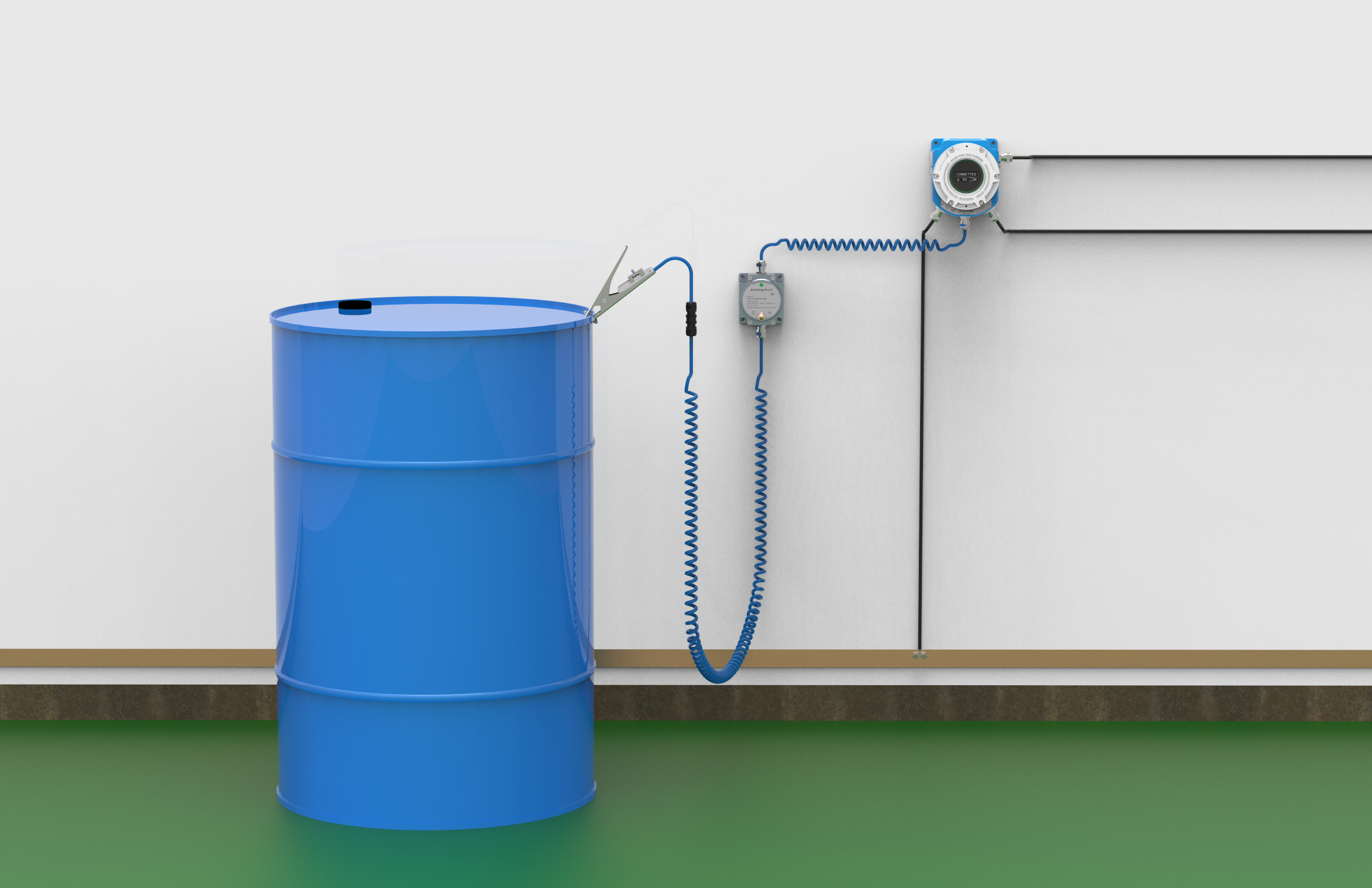

1.The grounding clamp is connected to the tanker chassis

2.The system analyzes the return path to confirm a genuine low-resistance connection to true earth

3.Only after successful verification is the interlock output enabled

4.Grounding status is continuously monitored throughout the operation

5.Features grounding clamp return detection, ensuring the clamp is correctly stowed and alerting the operator if not.

4.Applications

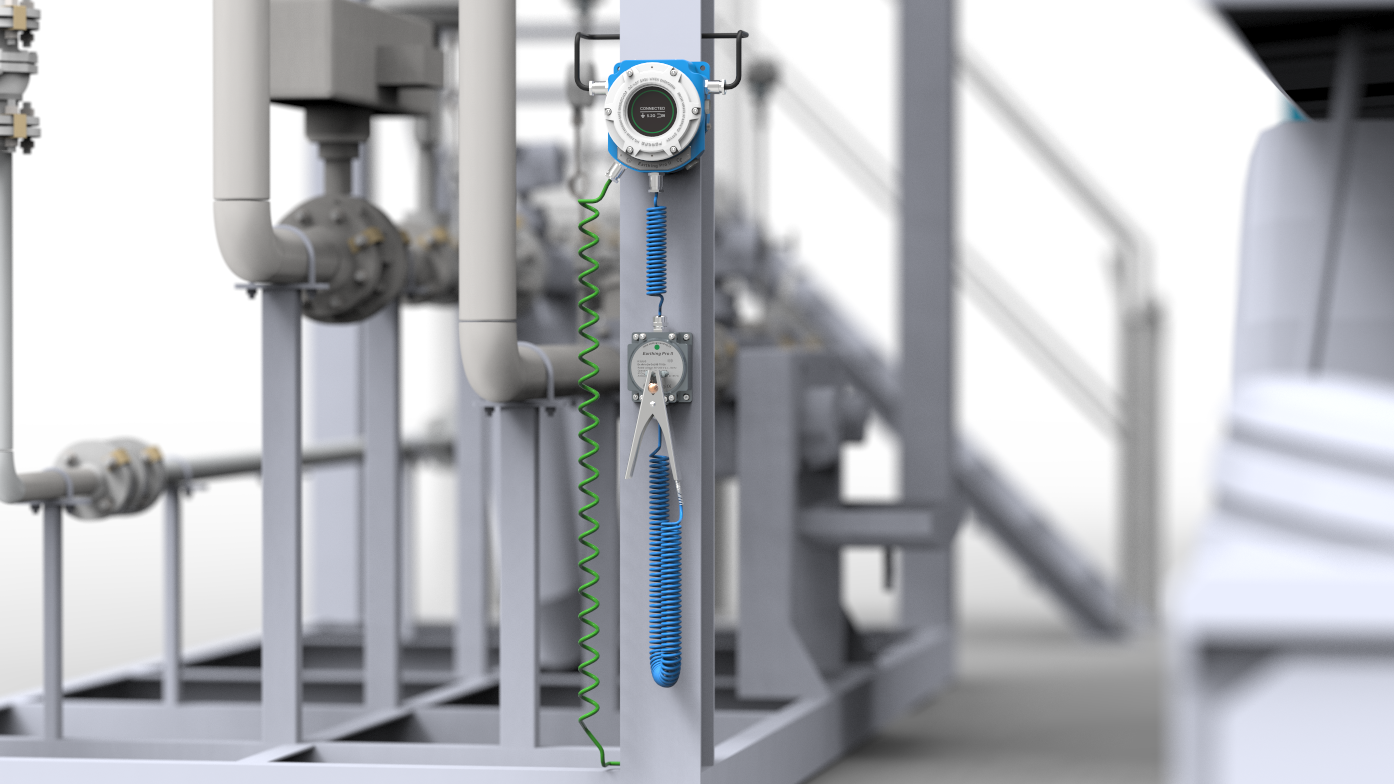

Tank truck loading racks

Road tanker unloading stations

Flammable liquid transfer operations

Tank truck unloading racks /loading stations

Flammable liquid transfer operations
